Installing a curtain pole may seem like a simple task, but the correct positioning of the curtain pole or curtain rod brackets is what really determines whether the curtains will hang straight, stay secure and remain easy to open on a day-to-day basis. Many people focus first on the fabric, colour or style of the window dressing, but the position of the brackets has a direct impact on the final appearance, weight distribution and durability of the entire system.
When brackets are installed in the wrong place, the curtain pole or rod may end up too low, too short, crooked or without sufficient support in the middle. The result is often a sagging pole, curtains that block some of the natural light, or fixings that start to come loose over time. With the right measurements, the correct type of bracket and fixings suitable for the wall type, it is possible to create a clean, functional finish that complements the style of UK homes.
Why is Bracket Placement So Important?
Bracket placement does more than simply secure the curtain rod to the wall. It determines the visual height of the window, the space available for the curtains to open, the way the curtain fabric falls, and the system’s ability to support weight without warping.
A bracket positioned too close to the window frame can cause the curtains to cover the glass even when they are open. Conversely, a bracket that is too low can visually flatten the room and reduce the sense of height. The curtain pole should be high enough to elongate the window and wide enough to allow the fabric to be pulled to the sides.
In many residential projects, a good guideline is to install the curtain pole about 10 to 15 cm above the top of the window frame and extend it approximately 15 to 20 cm beyond each side of the window. In smaller spaces, 50 mm above and 50 mm beyond the frame may be enough as a minimum, but this does not always provide the best visual finish.
Where to Place Curtain Pole Brackets at the Right Height?
To decide where to place curtain pole brackets, start by measuring the window frame, not just the glass. Use a tape measure to mark the total width of the window and then determine how far the pole should extend on each side. This side clearance is essential because it allows the chosen curtains to be drawn back without blocking the light.
The bracket height also needs to be considered before drilling. For standard windows, the right height is usually around 10 to 15 cm, or 4 to 6 inches, above the window frame. If you have a high ceiling, the pole can sit slightly higher to create better proportion. For a more dramatic effect, the brackets can be mounted around 20 to 30 cm, or 8 to 12 inches, above the frame. If the ceiling is low, positioning the pole closer to the ceiling can help create the impression of a taller window. For floor to ceiling windows, it is often worth considering ceiling-mounted brackets or a discreet track, depending on the weight and the desired effect.

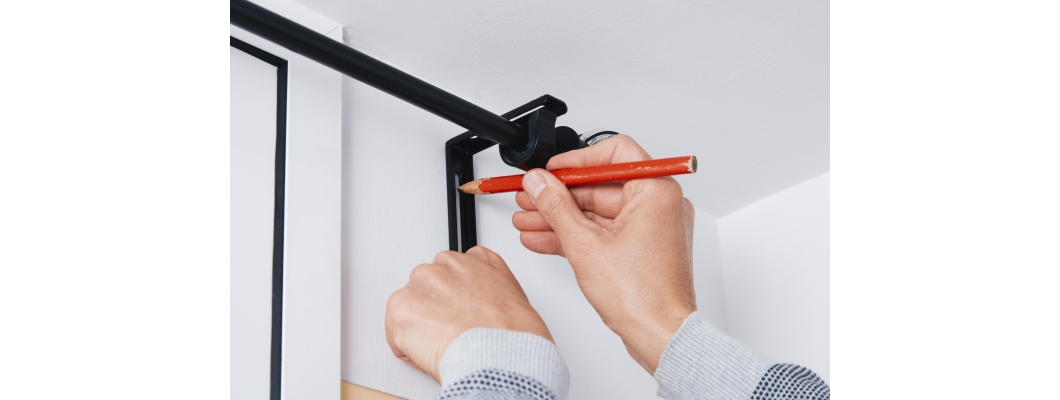

Once you have decided on the height and width, mark the bracket positions with a pencil. Use a spirit level to ensure all points are aligned. Do not rely solely on the top of the frame as a reference, as windows, walls and ceilings may not be perfectly level, especially in older homes.
Choosing Curtain Brackets: Curtain Rod Brackets, Standard Brackets and Recess Bracket Options
Not every bracket solves the same problem. Curtain rod brackets come in single, double and adjustable types, and the right choice depends on the pole, wall type, curtain fabric and available space. Standard brackets are used in most installations outside the window recess, where there is sufficient space above and to the side of the window. They hold the curtain pole away from the wall and work well for light or medium-weight curtains, provided the fixings are suitable.
A centre bracket, sometimes referred to as a central bracket, is recommended when the pole is long, when the window is wide, or when the curtain fabric is heavy. As a general rule, shorter standard poles may only need two end brackets, while poles over 150 cm, wider windows and heavier curtains usually need extra support. For spans over 2 m, a centre bracket is strongly recommended as part of the mounting to prevent sagging. Thicker curtains, blackout linings and heavyweight curtains exert more pressure on the pole and screws. Distributing the weight across all the brackets is therefore essential to prevent the rod from bending in the middle.
Double brackets are recommended when there are two layers of window dressing, such as voiles or sheers combined with heavier curtains. A recess bracket, on the other hand, is used when the pole needs to be installed within a window recess, attaching to the inner sides rather than the wall above the window. For bay windows, the system must be measured section by section, taking into account angles, curves and intermediate support points.
How to Measure and Mark Bracket Positions
Before picking up the drill, mark out the layout on the wall. Measure the chosen height above the window frame and make a small mark on one side, then repeat the same measurement on the other side, checking the distance from the edge of the frame so both sides match. Next, measure the lateral distance to determine where each end bracket will go. The aim is for the pole to be centred in relation to the window, with enough space for the finials and curtain rings to move freely.
Place the spirit level over the marks and adjust any discrepancies before drilling. If needed, lightly draw a guide line between the marks. If there is a centre bracket, it must be at exactly the same height as the end brackets. A difference of just a few millimetres can create tension in the pole or cause the curtains to run unevenly.
It is also important to consider the curtain length. Long curtains, especially those that reach the floor, require more precise marking so they finish neatly, usually with about 1 cm clearance above the floor unless you want a puddled or longer finish. If the fabric has a heading that rises above the pole, such as some eyelet or pleated styles, include this detail in the height calculation so the bracket height accounts for it.
Fixing Brackets to Different Types of Wall
The wall type determines the type of fixing required. In brick, concrete or masonry, it is usually necessary to use a masonry drill bit and suitable wall plugs or rawl plugs. In plasterboard, installation requires fixings designed for hollow walls or, for heavier loads, heavy-duty toggle bolts. Where possible, heavier curtains should be fixed into timber studs or battens. Using the wrong plugs is one of the most common causes of loose brackets.
Before drilling, check for any electric cables or pipes in the area. Use a suitable detector and avoid drilling directly above or below sockets and switches. This precaution is particularly important in older UK properties, where cable routes may not follow the expected pattern.
Once you have confirmed that the spot is safe, choose a drill bit compatible with the size of the wall plugs. A handy tip is to mark the depth of the plug on the drill bit with tape, to avoid drilling deeper than necessary. Drill clean pilot holes, insert the plugs and secure the brackets with suitable screws. Tighten with a screwdriver, but avoid applying so much force that you damage the wall or the hardware.
Installing the Pole, Rings and Finials
Once all the brackets are secured, check the alignment before fitting the pole with the curtains. Rest the pole on the brackets, check that it is level and see if there is any movement. If there is any play, tighten the screws again or check the type of fixings used.
Next, remove one finial, slide the curtain rings onto the pole or thread the pole through the curtain eyelets, depending on the model chosen. Replace the finial at the end of the pole and rest the full assembly on the brackets.
In installations with a centre bracket, distribute the rings evenly on each side. It is also worth leaving one or two rings between the end bracket and the finial to keep the end of the curtain in place when it is opened and closed.
Window Recesses, Bay Windows and Heavy Curtains
In a window recess, the available space may limit the use of standard brackets. In such cases, a recess bracket or a bespoke track can provide a neater and more secure solution. It is also important to leave sufficient space between the fabric and the glass, particularly in windows prone to condensation, to prevent the curtains from constantly touching the cold surface.

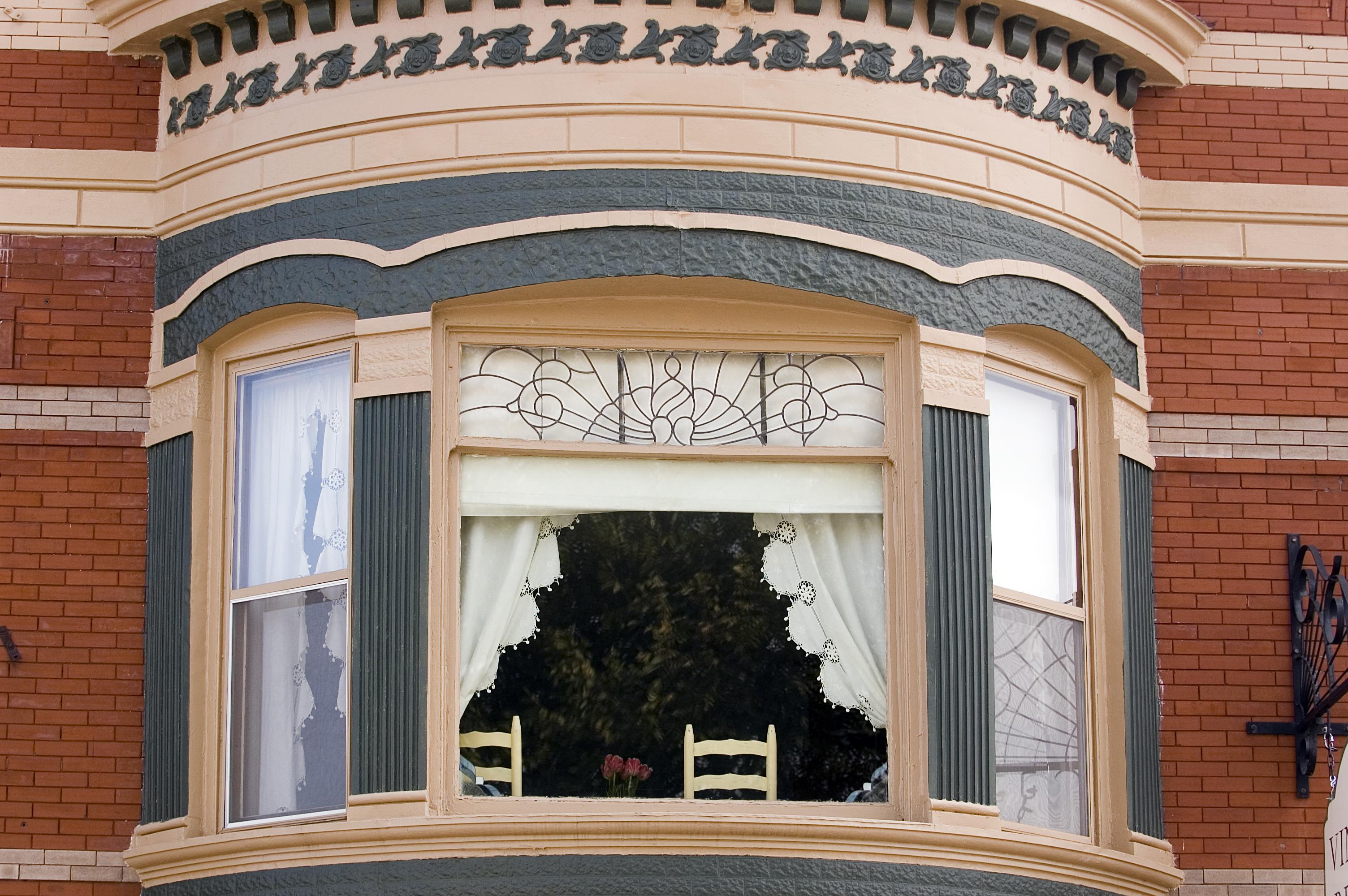

Bay windows require more planning. Instead of treating the window as a single straight line, each section must be measured separately. Angles need to be taken into account, and support must be distributed to avoid points of tension. For heavy curtains on bay windows, a specialised track may work better than a conventional curtain pole because it can provide smoother movement and more consistent support around angles.
Heavyweight curtains also deserve extra attention on any type of window. Thermal, blackout or heavily lined curtains enhance comfort and can help reduce heat loss through windows, but they significantly increase the load on the system. In such cases, the choice between a pole, track, centre bracket and fixings should be made with a focus on performance, not just style.
Common Mistakes When Fixing Curtain Pole Brackets
The most common mistakes are installing the brackets too close to the frame, not using a spirit level, ignoring the wall type, choosing weak screws, or failing to add a centre bracket on wider windows. Another common problem is forgetting to allow space for finials, rings and for the fabric to gather at the sides.
It is also a mistake to install first and measure later. The correct process is to measure, mark, check the level, check for cables, drill pilot holes and only then fix in place. This sequence reduces rework, avoids unnecessary holes in the wall and improves the safety of the installation.
Why Choose SG-S for Curtain Poles and Tracks?
SG-S is a suitable choice for those who need more than just a standard curtain pole. The company supplies curtain poles, curtain tracks, Silent Gliss systems, Metropole solutions, spares and accessories for a range of projects, from simple domestic installations to more technical systems.
This is important because the correct choice of brackets depends on the complete setup: the pole, wall type, curtain fabric, window size, operating style and final weight. In some cases, the best result may come from a decorative pole. In others, particularly with heavy curtains, bay windows or floor-to-ceiling windows, a track or Silent Gliss system can offer smoother operation, better support and greater durability.
With the right guidance, it is easier to choose hardware compatible with the space, avoid installation errors and ensure that the window dressing works well every day.
Summary
Fitting curtain pole brackets correctly starts with taking accurate measurements. The pole must be at the correct height, with sufficient width to allow the curtains to open without blocking the window. The brackets must be level, evenly spaced and secured using wall plugs, rawl plugs or fixings suitable for the type of wall.
For wider windows, thicker curtains or heavyweight curtains, a centre bracket is usually essential. In window recesses, bay windows and floor-to-ceiling windows, it is worth considering specific solutions rather than adapting an unsuitable system. When bracket placement is well planned, the result is safer, more elegant and much more functional.
FAQ
Where should curtain pole brackets be placed?
Curtain pole brackets should be positioned above the window frame and extend beyond the sides of the window. A common guideline is to install the pole 10 to 15 cm above the frame and extend it 15 to 20 cm on each side, adjusting according to the available space, the weight of the curtains and the desired visual effect.
How high should curtain pole brackets be?
The correct height depends on the room and the length of the curtains. For a balanced finish, position the brackets above the top of the window. In rooms with low ceilings, placing the pole closer to the ceiling can help to visually lengthen the window.
Do I need a centre bracket?
Yes, if the curtain rod or pole is long, if the window is wide, or if the curtains are heavy. The centre bracket prevents the rod from bending in the middle and helps distribute the weight across all the brackets.
What drill bit should I use?
The drill bit should match the size of the wall plugs or rawl plugs used. For brick, concrete or masonry, use a masonry drill bit. For other types of wall, choose fixings compatible with the material.
Can I fit curtain pole brackets into plasterboard?
Yes, but you must use fixings specifically designed for plasterboard and take the weight of the curtains into account. For heavy curtains, it is best to fix them into a stud or batten where possible, or consider a more suitable track or fixing system.
What is the best option for a window recess?
In a window recess, a recess bracket or made-to-measure curtain track is usually the neatest solution. The choice depends on the depth of the recess, the weight of the fabric and the space available for the curtain to move.
How do I stop a curtain pole from sagging?
Use suitable brackets, add a centre bracket where necessary and choose fixings compatible with the wall. It is also important not to exceed the pole’s weight capacity, especially with heavyweight curtains.
Are curtain poles or tracks better for heavy curtains?
Curtain poles can work well, provided they have strong brackets and fixings. However, for heavy curtains, large spans, bay windows or frequent use, a specialist curtain track can offer smoother movement and better support.
